Shaped pipes

We produce our shaped pipes strictly following the customer’s technical drawing or we extract the detail of our product from the machine drawing.
All purchased materials are certified 3.1 and on request we can also have: manufacturer’s PED+ANNEX+ISO 9001.
Our drilling centres can work from Ø12 to Ø168.3 while for larger diameters we can buy the semi-finished product from external workshops and finish them at Htc Italia.
For copper pipes we bend up to Ø 54 mm annealed pipe R220 and semi-hard pipe R250, and bend up to Ø 133 mm straight pipe or with commercial bends. We carry out widening and tapering operations according to specific requirements.

Materials used

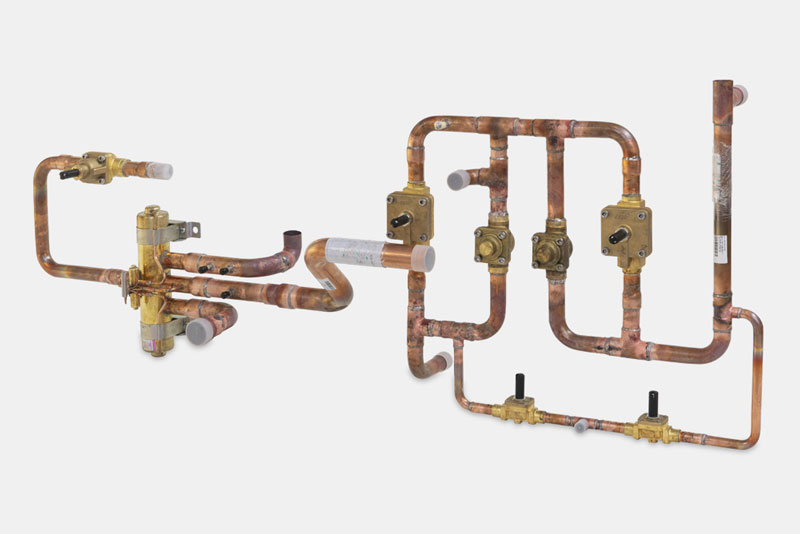

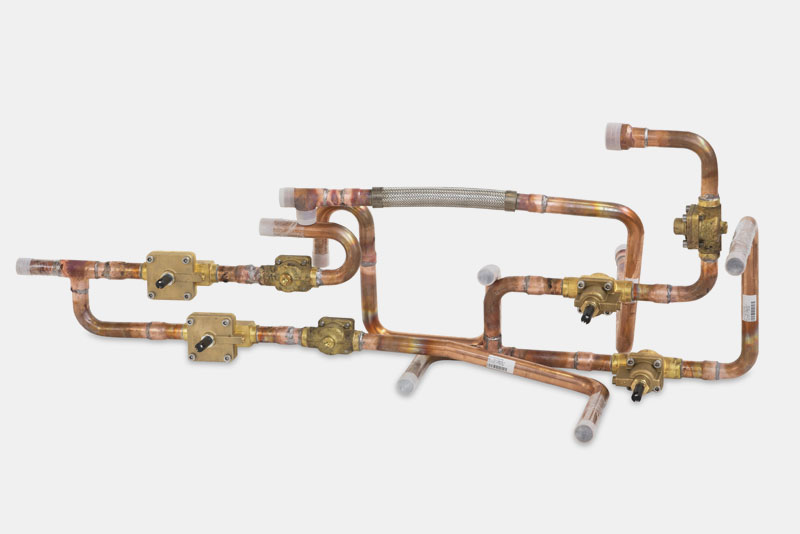

COPPER

We produce copper piping using:
  • ANNEALED PIPE R220
  • SEMI-HARD PIPE R250

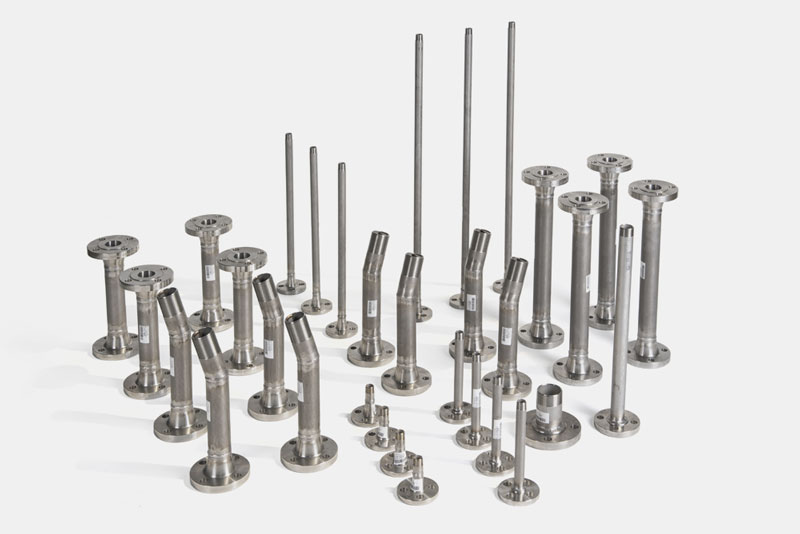

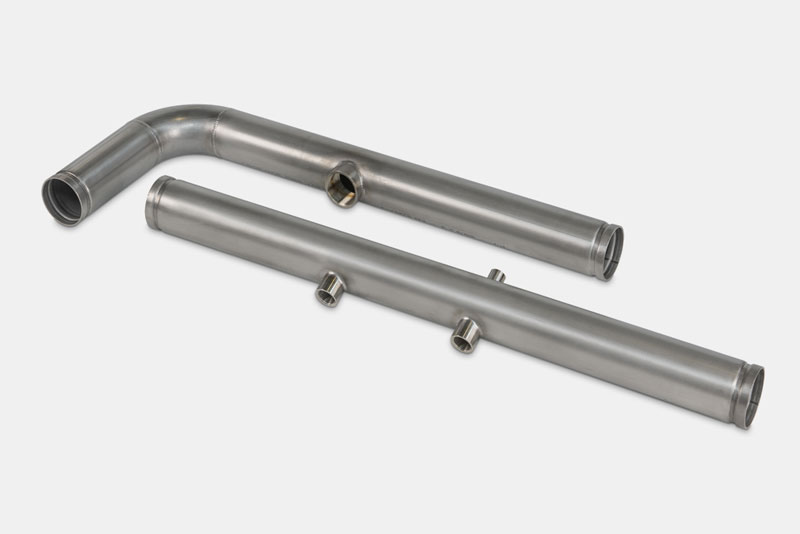

STAINLESS STEEL

We manufacture stainless steel piping using these materials:
  • RODS TP 304L / TP 316L ELECTROWELDED (LASER) EN 10217-7 / TC1 – ISO1127 D3/T3 1.4301 / 1.4307
  • RODS TP 304L / TP 316L ASTM A312 / ASME SA312 B36.19 / EN 10216-5 TC1 S/S 1.4301 / 1.4307
  • COILS TP 304 1.4301 / TP 316L 1.4404 EN 10217-7 / ASTM A249 / EN ISO 10893-1 10893-2 / EN 8493

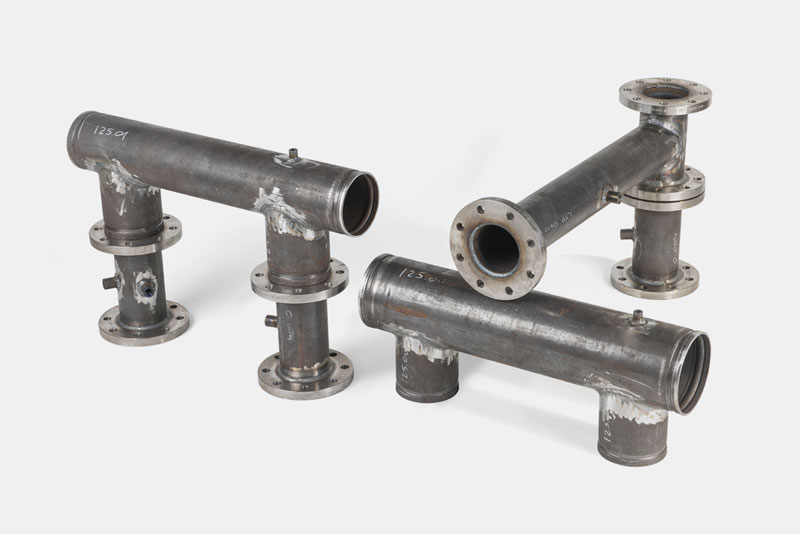

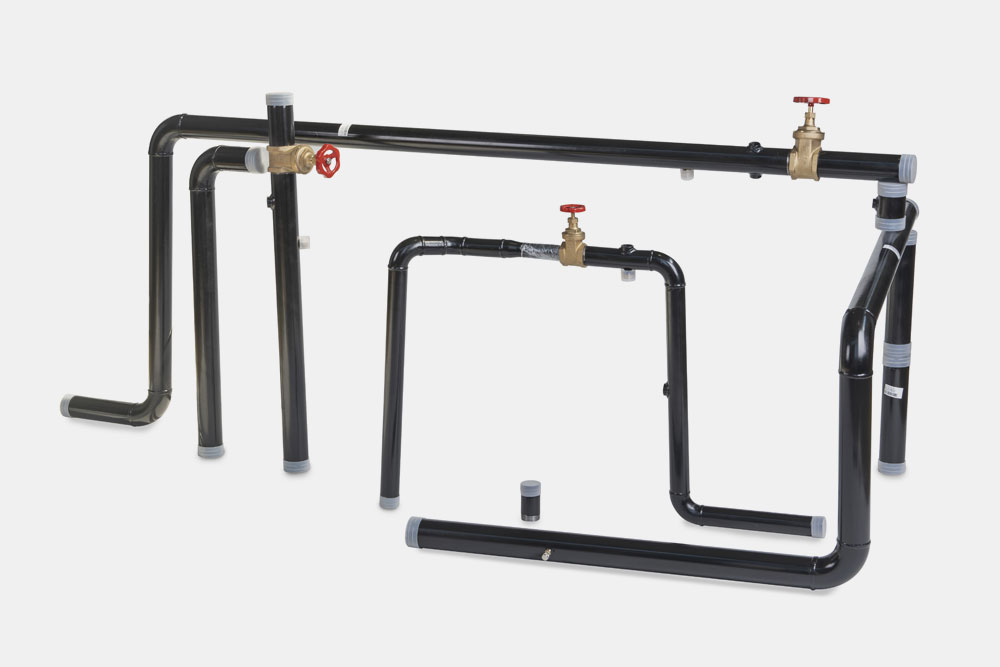

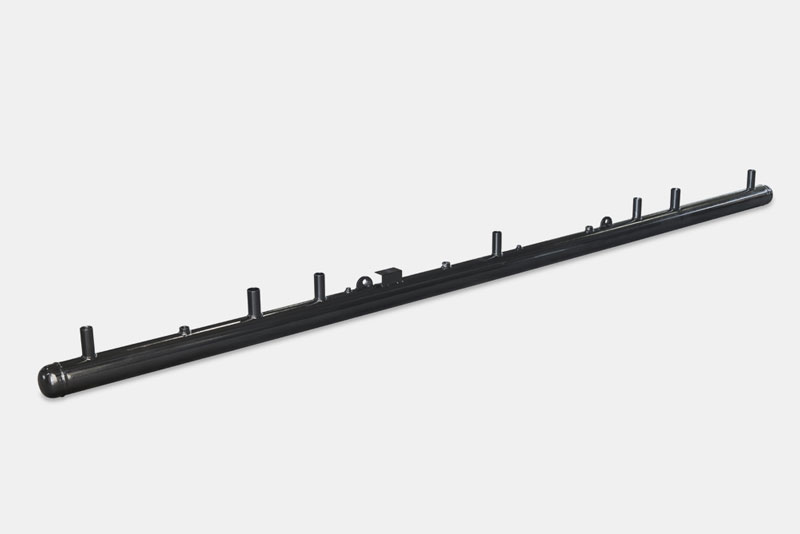

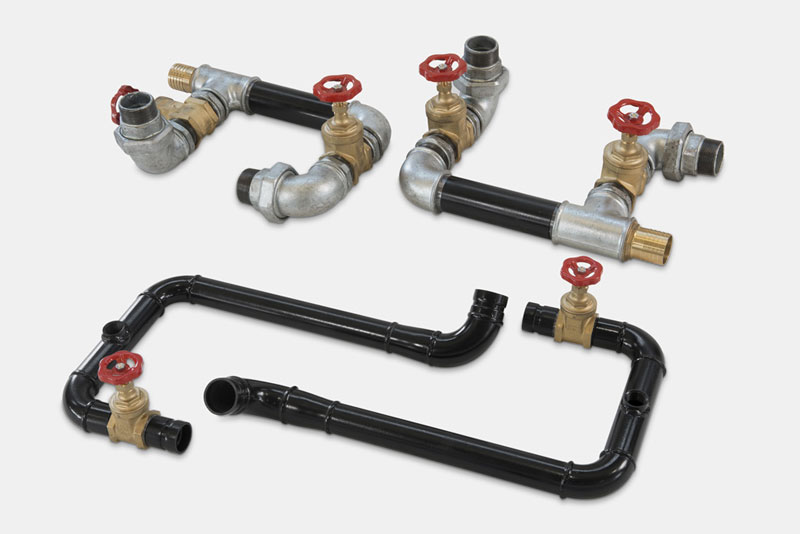

CARBON STEEL

We manufacture carbon steel piping using these materials:
  • HOT-ROLLED SEAMLESS S195T EN10255 L1 EW
  • COMMERCIAL SMOOTH P235 TR2 S/S EN 10216-1
  • ASTM/ASME A/SA A106 GR.B S/S
  • ASTM A333 / ASME SA333 GR.6 S/S
  • Other types on request

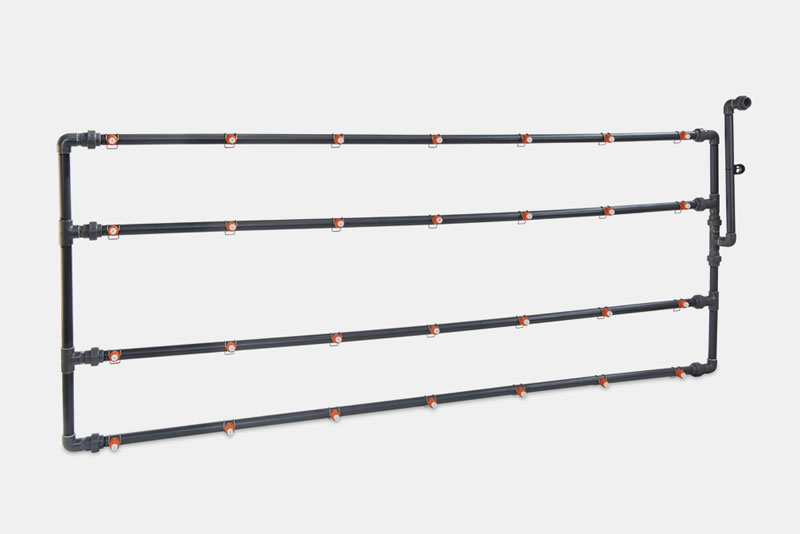

PVC

We manufacture PVC piping using these materials:
  • THREADABLE PVC-U PN16

Processes carried out

  • CUTTING

  • DRILLING

  • TURNING

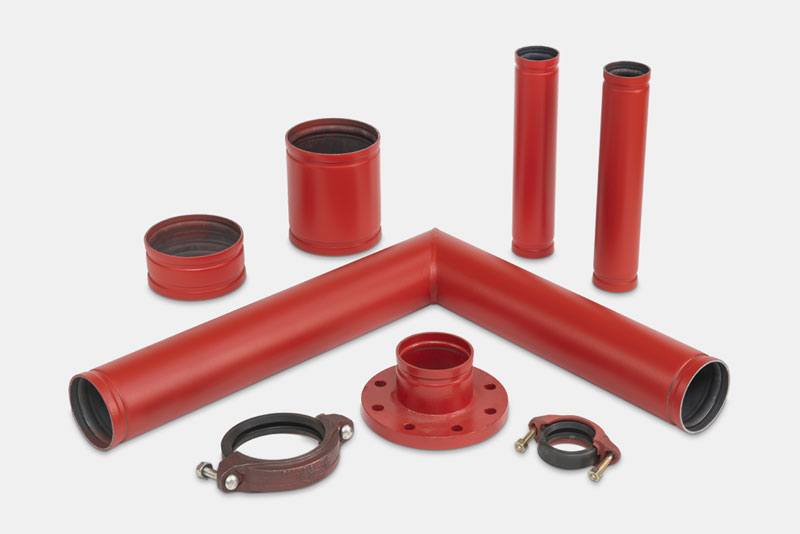

  • VICTAULIC ROLLING

  • WELDING

  • PAINTING, PICKLING AND INSULATION

  • TESTING ON REQUEST

  • BENDING

Contact us for further information
