Manifolds
We produce manifolds of stainless steel, carbon steel and copper strictly following the customer’s technical drawing or we extract the detail of our product from the machine drawing.
All purchased materials are certified 3.1 and on request we can also have: manufacturer’s PED+ANNEX+ISO 9001.
We also handle individual parts for special orders.
All purchased materials are certified 3.1 and on request we can also have: manufacturer’s PED+ANNEX+ISO 9001.
We also handle individual parts for special orders.
Technical characteristics
FOR STAINLESS STEEL
- Our drilling centres can work from Ø12 to Ø168.3 while for larger diameters we can buy the semi-finished product from external workshops and finish them at Htc Italia.
- The supplies can be in AISI 304 E 316 or in copper with the following diameters: Ø7.2 Ø7.94 Ø9.52 Ø12 Ø12.7 Ø15.88
FOR CARBON STEEL
- Our drilling centres can work from Ø12 to Ø168.3 while for larger diameters we can buy the semi-finished product from external workshops and finish them at Htc Italia.
- The supplies can be in copper, Cu/Ni, CuFE.
FOR COPPER
- Our drilling centres can work from Ø12 to Ø133
- The supplies can be in copper, Cu/Ni, CuFE.
Materials used

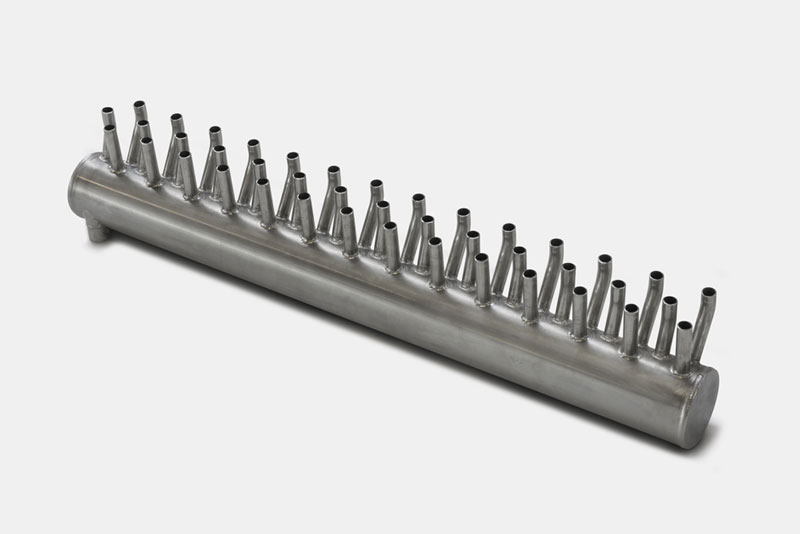

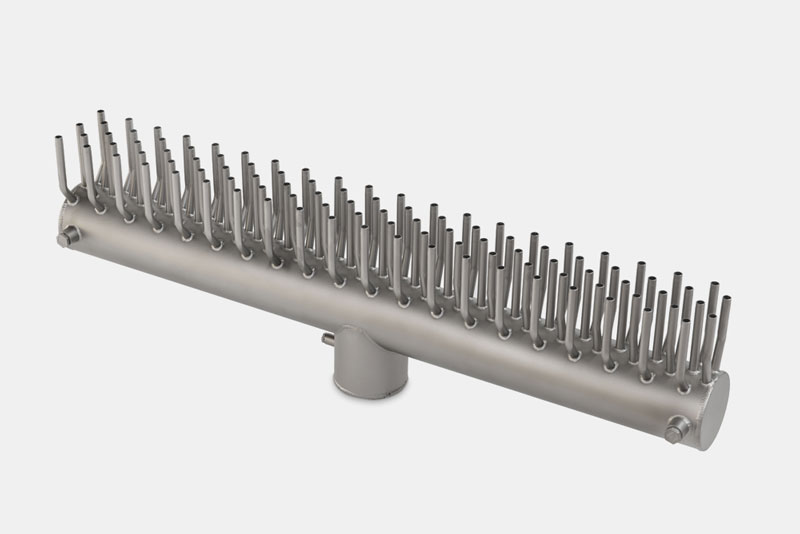

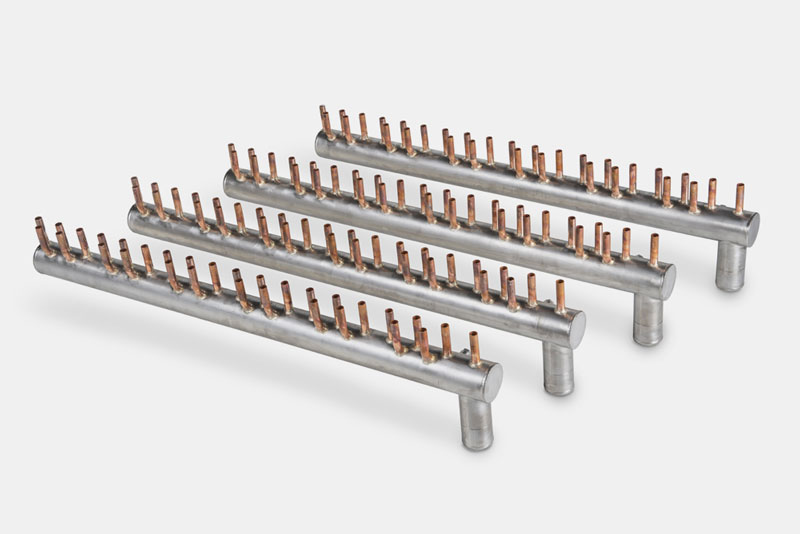

STAINLESS STEEL
We manufacture manifolds of stainless steel using these materials:
- RODS TP 304L / TP 316L ELECTROWELDED (LASER) EN 10217-7 / TC1 – ISO1127 D3/T3 1.4301 / 1.4307
- RODS TP 304L / TP 316L ASTM A312 / ASME SA312 B36.19 / EN 10216-5 TC1 S/S 1.4301 / 1.4307
- COILS TP 304 1.4301 / TP 316L 1.4404 EN 10217-7 / ASTM A249 / EN ISO 10893-1 10893-2 / EN 8493
- Other types on request
CARBON STEEL
We manufacture carbon steel manifolds using these materials:
- HOT-ROLLED SEAMLESS S195T EN10255 L1 EW
- COMMERCIAL SMOOTH P235 TR2 S/S EN 10216-1
- ASTM/ASME A/SA A106 GR.B S/S
- ASTM A333 / ASME SA333 GR.6 S/S
- Other types on request

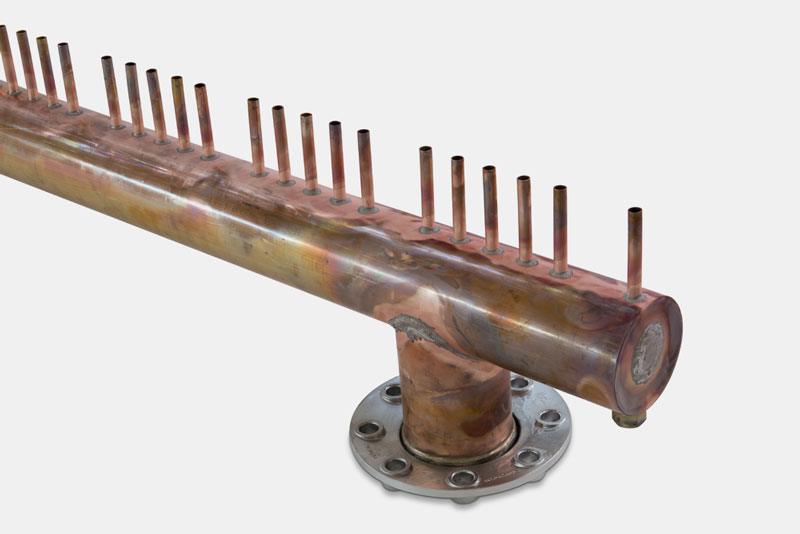

COPPER
We manufacture copper manifolds using these materials:
- RODS Cu-DHP R290 EN 12735-1
- SMOOTH LWC COILS Cu-DHP R220 EN 12735-2
- RODS cufe2 R300 EN 12735-1
Processes carried out
CUTTING
DRILLING
TURNING
VICTAULIC ROLLING
WELDING
PAINTING, PICKLING AND INSULATION
TESTING ON REQUEST
BENDING
